Reconstructing wall shear stress from thermal wall imprints

Md Rakib Hossain, John Craske, Maarten van Reeuwijk

International Journal of Heat and Fluid Flow · 2022

DOI: 10.1016/j.ijheatfluidflow.2022.108976
DNSBoundary LayersMachine LearningMass TransferSPARKLE

Abstract

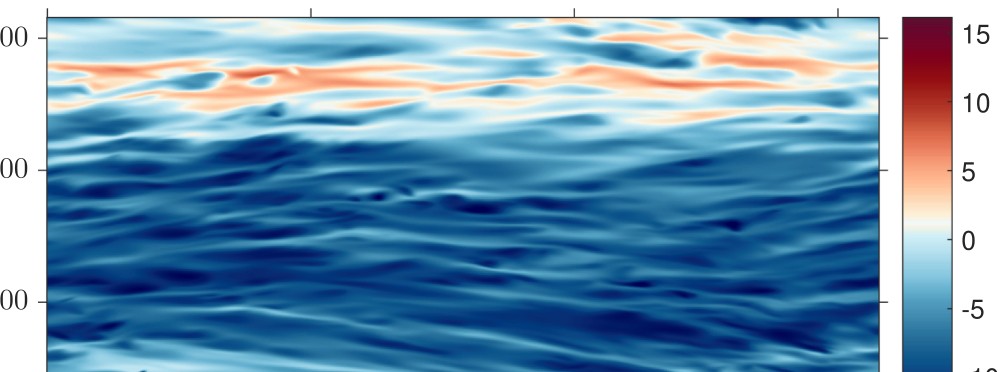

We reconstruct the wall shear stress of plane Couette flow from thermal wall imprints generated by direct nu - merical simulation at Re τ = 263 using an imposed surface temperature flux and fixed temperature at the bottom and top boundary, respectively. We explore the strong correlation between wall shear stress and wall temper - ature by analysing their joint probability density function and cross variance spectrum, before developing a spectral model based on linear regression. We then use observed symmetries in the estimator parameters to reduce the degrees of freedom of the model. The reconstructed wall shear stress reproduces streamwise streaky structures well. The relative error in the ℓ 2 -norm of 0 . 25 is primarily associated with the absence of local maxima in the reconstructed wall shear stress.
